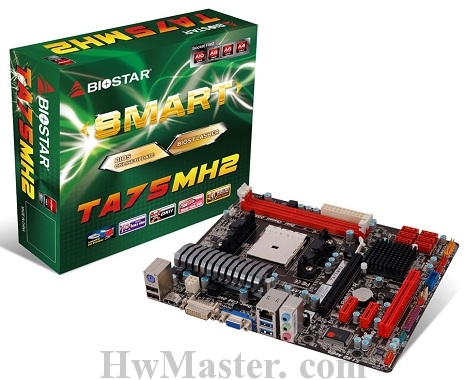

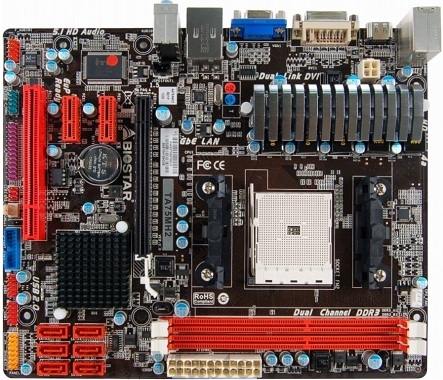

Oltre  al lancio della APU AMD serie A, Biostar ha presentato la nuovissima scheda madre Micro-ATX TA75MH2, basata su socket FM2 che offre e compatibilità alle ultime APU Trinity. La scheda è dotata di  un VRM da 5 fasi, due slot DIMM DDR3 (1866 MHz),  uno slot PCI-Express 2.0 x16, due PCI-Express x1 e uno slot PCI legacy. Presenti per il comparto storage sei porte SATA 6 Gbps mentre per le connessioni video sono disponibili una DVI, una HDMI e una D-Sub.

Equipaggiata con audio HD a 6 canali, Gigabit Ethernet, quattro porte USB 3.0 (due sul pannello posteriore, due tramite header) e BIOS UEFI.

Specifiche:

Chipset
  • AMD A75
CPU SUPPORT
  • AMD A10 Processor
  • AMD A8 Processor
  • AMD A6 Processor
  • AMD A4 Processor
  • AMD E2 Processor
  • AMD Athlon™ II X4 Processor
  • Maximum CPU TDP (Thermal Design Power) : 100Watt
MEMORY
  • Support Dual Channel DDR3 1866/1600/1333/1066/800 MHz
  • 2 x DDR3 DIMM Memory Slot
  • Max. Supports up to 32GB Memory
EXPANSION SLOT
  • 1 x PCI-E x16 2.0 Slot
  • 2 x PCI-E x1 2.0 Slot
  • 1 x PCI Slots
STORAGE
  • 6 x SATA3 Connector
  • Support SATA RAID: 0,1,10
USB
  • 2 x USB 3.0 Port
  • 1 x USB 3.0 Header
  • 2 x USB 2.0 Port
  • 2 x USB 2.0 Header
GbE
  • Realtek RTL8111F – 10/100/1000 Controller
INTEGRATED VIDEO
  • By CPU model
  • AMD Dual Graphics Technology
  • Supports DX11
  • Supports HDCP
CODEC
  • Realtek ALC662 6-Channel HD Audio
REAR I/O
  • 1 x PS/2 Keyboard
  • 2 x USB 3.0 Port
  • 2 x USB 2.0 Port
  • 1 x HDMI Connector
  • 1 x DVI Connector
  • 1 x VGA Port
  • 1 x RJ-45 Port
  • 3 x Audio Connector
INTERNAL I/O
  • 1 x Printer Header
  • 1 x USB 3.0 Header
  • 2 x USB 2.0 Header
  • 6 x SATA3 6Gb/s Connector
  • 1 x Front Audio Header
  • 1 x Front Panel Header
  • 1 x S/PDIF-OUT Header
  • 1 x CPU FAN Header
  • 1 x System FAN Header
  • 1 x Serial Header
  • 1 x CIR Header
DIMENSION
  • Micro ATX Form Factor Dimension: 24.4cm x 20cm ( W x L )
OS SUPPORT
  • Support Windows XP / Vista / 7 / 8
ACCESSORIES
  • 2 x SATA Cable
  • 1 x I/O Shield
  • 1 x DVD Driver
  • 1 x User Manual
FEATURES
  • Windows 8 Compatible
  • Supports BIO-Remote2
  • Supports BIO-Remote
  • Supports 100% Solid capacitor
  • Supports BIOS-Flasher
  • Supports Charger Booster
  • Supports BIOS Online Update

La scheda madre Biostar TA75MH2 verrà immessa nel mercato a 89$.
